Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tải tối đa: | 50KN,100KN,200KN,300KN | lớp chính xác: | 0,5 lớp |
|---|---|---|---|
| Phạm vi đo hiệu quả: | 0,4%~100% | Đo lường độ chính xác: | Hiển thị giá trị ± 0,5% |
| Thử nghiệm giải quyết: | Tải trọng tối đa 1/200000 | Chiều rộng thử nghiệm hiệu quả: | 400mm |
| Đột quỵ kéo hiệu quả: | 800mm | Phạm vi tốc độ thử nghiệm: | 0,01 ~ 100mm / phút |
| Độ chính xác của phép đo độ dịch chuyển: | ± 0,5% | Phạm vi đo biến dạng: | Khoảng cách tối thiểu: 10 mm, Phạm vi tối đa: 800mm |
| Độ chính xác đo biến dạng: | ± 0,5% | Nguồn điện: | 220v, 50Hz |
| Tiêu thụ điện năng: | 0,75kW | Kích thước máy: | 107*56*210cm |
| Cân nặng: | 320kg | ||
| Làm nổi bật: | 50kN universal tensile testing machine,ISO 6892 fiber composites test machine,digital control tensile testing machine |
||

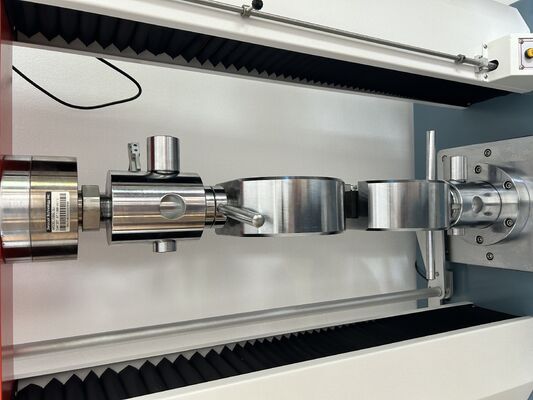

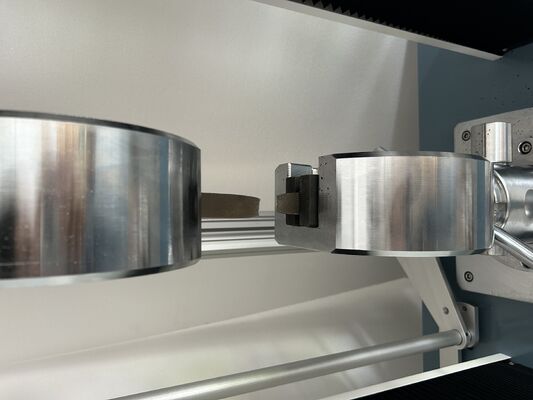

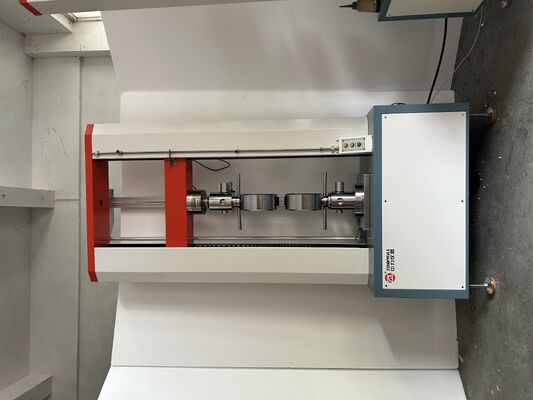

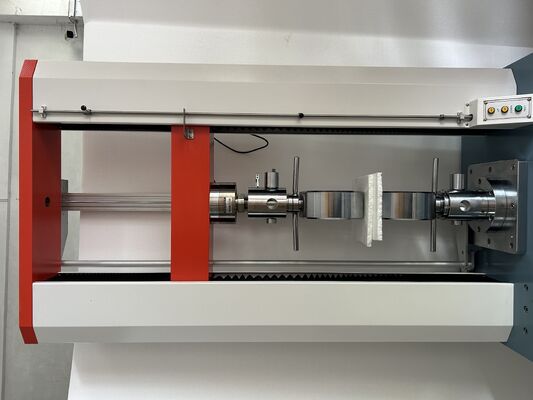

This test machine is designed for testing flexible materials with large deformation, including rubber, plastics, leather, and similar materials. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.
Widely used in quality control across multiple industries including:
GB/T16491-1996 electronic universal testing machine
| Model | ZL-8006 |
|---|---|
| Maximum load | 50KN,100KN,200KN,300KN |
| Accurate grade | 0.5 grade |
| Effective measuring range | 0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value±0.5% |
| Tester resolution | Max load 1/200000,constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
| Effective testing width | 400mm(can be widened according to customer's requirement) |
| Effective tensile stroke | 800mm (can be increased according to customer's requirement) |
| Range of testing speed | 0.01~100mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5% |
| Deformation of measured system | Min span: 10mm, Max range of deformation: 800mm Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast/slow two speeds to control, can jog |
| Back to function of testing platform | Manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| Fixture | A set of tensile fixture |
| Machine size | 107*56*210cm(length*width*height) |
| Motor | Panasonic AC servo motor and drive |
| Sensor | USA Transcell high accuracy loadcell |
| Power | 220V, 50HZ, 0.75KW (depending on different demand of force) |
| Weight | Approximately 320 KG |
| Unit | KG, N, LB, TON can be exchanged |
Electronic Universal Tensile Test Equipment combines electronic technology with mechanical transmission, featuring accurate load speed, force measurement range, and high accuracy for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is simple to operate and ideal for quality control in production lines, suitable for testing non-metallic and metallic materials with loads less than 2 tons.
Features include photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software for measurement, control, calculation and storage. Automatically calculates stress, elongation rate (with extensometers), tensile strength, elastic modulus, and statistical results. Computer displays dynamic curves during testing with post-test data analysis and report generation capabilities.
