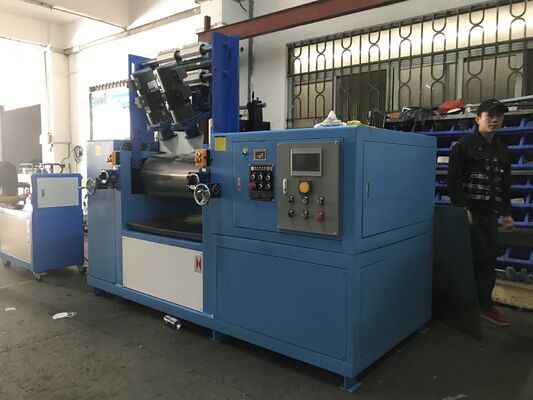

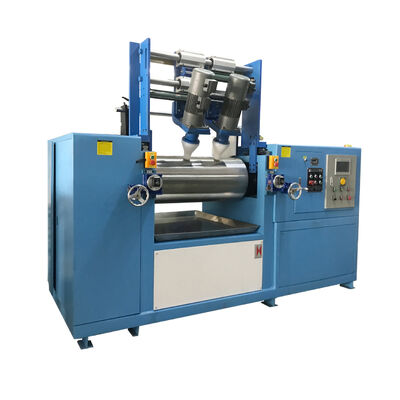

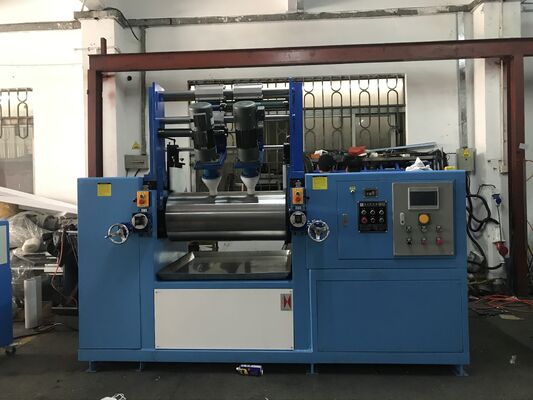

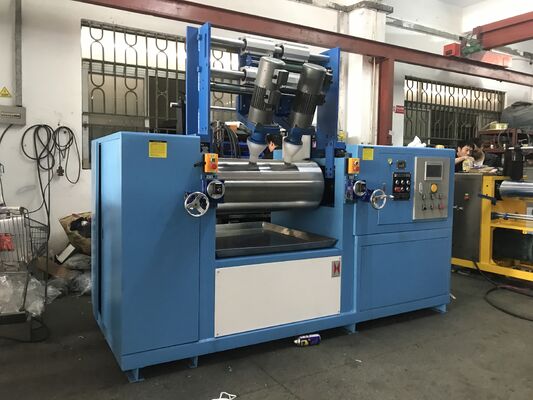

XK-360 14 Inch Silicone Rubber Open Mixing Mill Machine
Professional Lab Silicone Plastic Rubber Open Mixing Two Roll Mill Machinery is engineered to provide unmatched performance for masticating and kneading natural rubber, synthetic rubber, EVA, or PVC pellets with various chemical materials. This machine is primarily used for plastic, hot mill, and mixing mill operations of natural and synthetic rubber in rubber product factories.
Applications
Professional Lab Silicone Plastic Rubber Open Mixing Two Roll Mill Machinery is widely used in the rubber and plastics industry for polymer mixing, including PVC and color master batch applications. The system consists of rolls, bearings, gap adjusting devices, electric control systems, and safety devices.
Technical Specifications
| Model | ZL-3018-76 | ZL-3018-120 | ZL-3018-160 | ZL-3018-200 | ZL-3018-230 | ZL-3018-300 | ZL-3018-400 |
|---|
| Diameter of roll (mm) | 76 | 120 | 160 | 200 | 230 | 300 | 400 |
| Length of roller face (mm) | 300 | 350 | 350 | 500 | 650 | 650 | 900 |
| Mixing Capacity (kg) | 0.002-0.6 | 0.002-2 | 0.002-2.8 | 0.002-5 | 0.005-10 | 1-15 | 5-30 |
| Front roll surface speed (rpm) | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| Friction ratio | 1:1.30 | 1:1.35 | 1:1.35 | 1:1.35 | 1:1.27 | 1:1.27 | 1:1.27 |
| Roll gap range (mm) | 0-3 | 0-6 | 0-6 | 0-8 | 0-12 | 0-12 | 0-15 |
| Driving Power (KW) | 1 | 1.5 | 2.2 | 7.5 | 11 | 30 | 37 |
| Machine weight (kg) | 160 | 460 | 660 | 860 | 1960 | 2960 | 3800 |
| Overall dimension (mm) | 1100x400x1180 | 1100x550x1380 | 1200x650x1380 | 2200x750x1380 | 2200x950x1580 | 2600x950x1580 | 5295x1789x170 |
Heating Mode: Electricity heating, Oil Heating (option)
Cooling Mode: Water Cooling (option)
Roll Temperature: Room temperature -- 300℃
Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ± 2 ℃ (high accuracy PID micro computer controller)
Safety device: 6 safety buttons with optional safety guard
Power: 380V 3 phase 50-60hz
Key Features
- Construction of mill rolls: drilled roll, bored roll, grooved roll
- Customizable speed ratio based on customer formula and processing requirements
- Frame, frame cap and base are welded and treated by annealing for stress relieving
- Rolls material is chilled cast alloy iron with hardness reaching 70HB
- Brake and emergency stop device ensures personnel and equipment safety
- Auto feeding oil or grease lubrication for easy maintenance and machine protection
- Human nature designed controlling system ensures labor safety
- Methods of adjusting roll nip: manual or electric
Intelligent Control Panel and PLC Control System
- Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code
- Control system can be set up to 20 mixing steps with 20 recipe spaces
- Remote import of process recipe and data monitoring, communicating with MES via Ethernet communication interface
- Ethernet communication interface with 20% control points reserved and touch screen provided
About Zhongli Instrument Technology Co., Ltd
We are Zhongli Instrument Technology Co., Ltd, an instrument expert headquartered in Dongguan, Guangdong, China since 2007, specializing in manufacturing lab testing equipment. Throughout our 13+ years of history, our products have sold well in European, American, and Southeast Asian markets, reaching over 80 countries worldwide.
Our equipment covers a wide range of industries including rubber and plastics, food, packaging, and electronics, suitable for scientific research units, quality inspection institutions, and academic fields. In addition to standard machines, our R&D team can provide customized solutions to meet your specific needs.
Frequently Asked Questions
How to choose the most suitable Mechanical Equipment?
Our professional team will provide the best recommendations based on your testing requirements and required specifications.
What's the delivery term?
We typically maintain stock in our factory. For out-of-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Do you accept customization service?
Yes, we offer both standard machines and customized solutions tailored to your specific requirements.
Can we visit your factory before order?
Yes, we warmly welcome and can help arrange hotel accommodations and airport pickup for factory visits.
Do you have customers in our country?
Our testing machines have been sold to over 80 countries including USA, Canada, Russia, UK, Italy, Germany, European nations, India, Pakistan, Philippines, Singapore, Malaysia, Thailand, Vietnam, Korea, Saudi Arabia, Brazil, and more.
How about your warranty?
We offer a two-year warranty with technical support and replacement parts. Our engineers may provide on-site service when necessary.
How about the packing for machine?

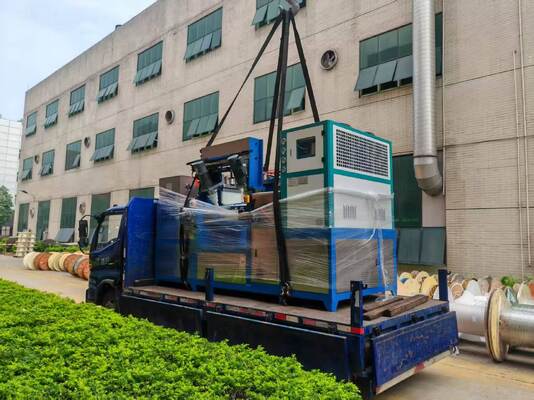

Machines are packed in standard export wooden boxes to ensure safe transportation by sea or air.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
How to install and use the product?
Products include English operating instructions and installation videos.
